MIO Rolling Roof Rig - 3ft x 6ft Portable Aluminum Roof Rack for SUVs & Trucks | Perfect for Camping, Road Trips & Outdoor Adventures

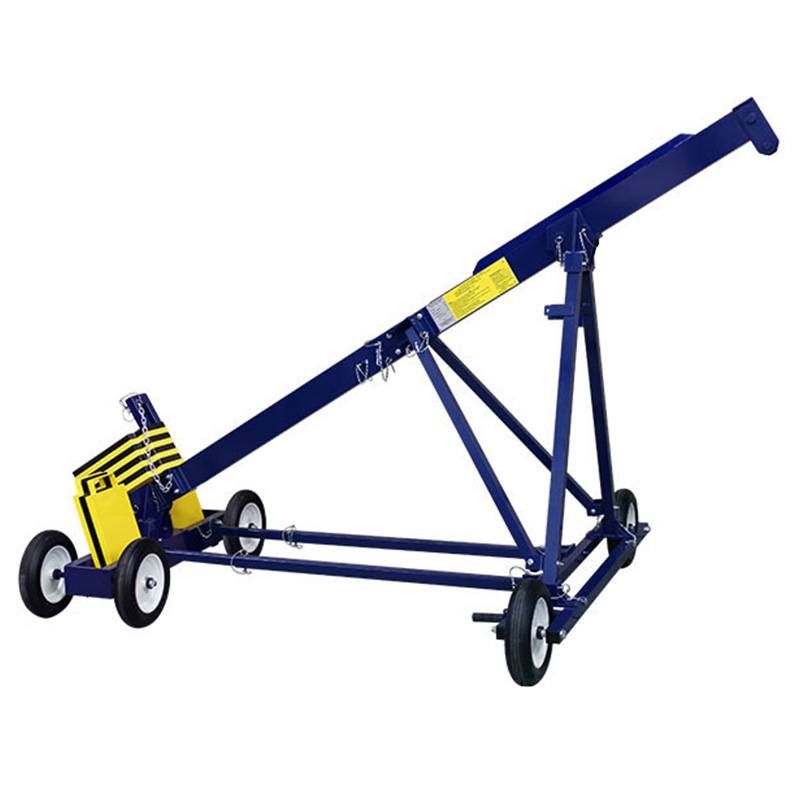

About the MIO Rolling Roof Rig - 3 Foot x 6 Foot

The aluminum MIO Rolling Roof Rig is easy to transport to the job site and quick to assemble. All joints are trussed and welded for maximum strength. Included are stainless steel quick connect pins for fast assembly. To avoid obstacles on the roof, the lower stabilization beams can detach and reattach in seconds.

Specs:

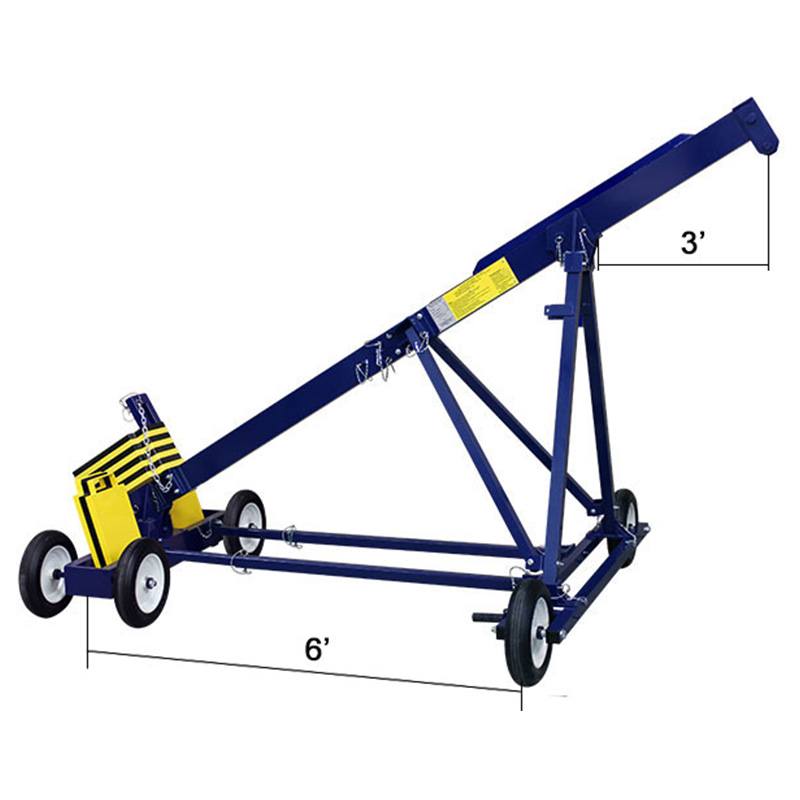

• Outreach - 3'
• Distance from front to rear wheels - 6'
• Counterweight - 504 lbs (12@42)
• Unit weight - 173 lbs
• Maximum working load - 250 lbs
• Working load w/ tools - 300 lbs
• Tested Static Load (CAL OSHA) - 1000 lbs
• Locking breaks - front and rear wheels - 2"
• Forged eyebolts for tie-back diam. - 1/2"
• Counterbalance safety factor - 4:1
• Distance from roof to anchor point 71"
• Inside parapet wall clearance at shoulder - 55"
• 13" diameter Pneumatic Rubber tires - 4
