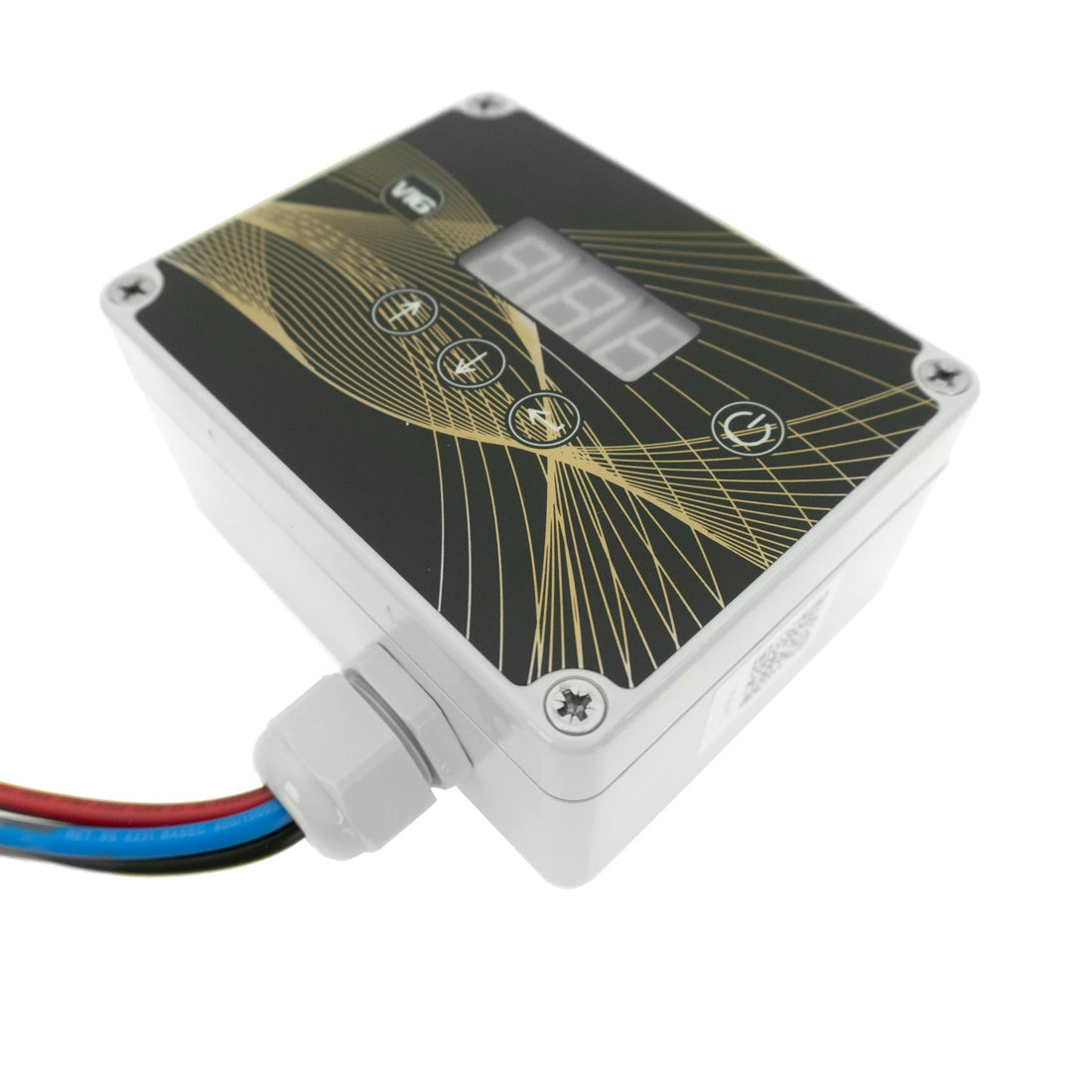

About the Spring Europe V16 Digital Pump Controller
The Spring Europe V16 Digital Pump Controller gives you the power to control your water fed pump's flow rate from 0-100%.
This nifty tool automatically pauses the flow when the water flow has stopped, and automatically restarts when water flow has restarted. This ability helps preserve your connections and the health of your equipment.
This pump controller also indicates when the pressure switch has operated and the battery's voltage.
1. To initiate your setup, connect the brown controller wire to the red pump wire, then the blue controller wire to the black pump wire.
2. Next, connect the fuse holder close to the battery end of the red wire. Cut the wire, and feed each end into the holder.
3. Tightly close the holder with a pair of pliers. Attach the black wire to the negative battery terminal, and the red wire to the positive battery terminal.
4. Finally, fit the fuse in the fuse holder. Fuses should only be fitted once all connections are made.
To turn on the controller, press the power button. Press the up button to increase the flow rate, and the down to decrease the flow rate. To turn the controller off, press the power button again.
PumpSmooth
The advanced pump drive system runs the pump smoother, quieter, and extends its life. With the V16, pumps can be driven slower, faster, and harder than before.
PolarityProtect
This feature means that the V16 will not be damaged if it is wired incorrectly; it simply will not work. Once it has been wired correctly, the unit will recover and work normally.
PumpPrecision
Thanks to the pump control technology, the pump is monitored with far greater precision, saving water and energy, and offering faster and more accurate dead-end detection.
PumpProtect
Incorporating features such as dead-end detection, pressure switch shutdown, over-current detection and short circuit detection, the V16 protects the whole system and helps save power and water.
PRODUCT HIGHLIGHTS:
- On/Off Button
- 2-year warranty
- Drive Pumps to 15A
